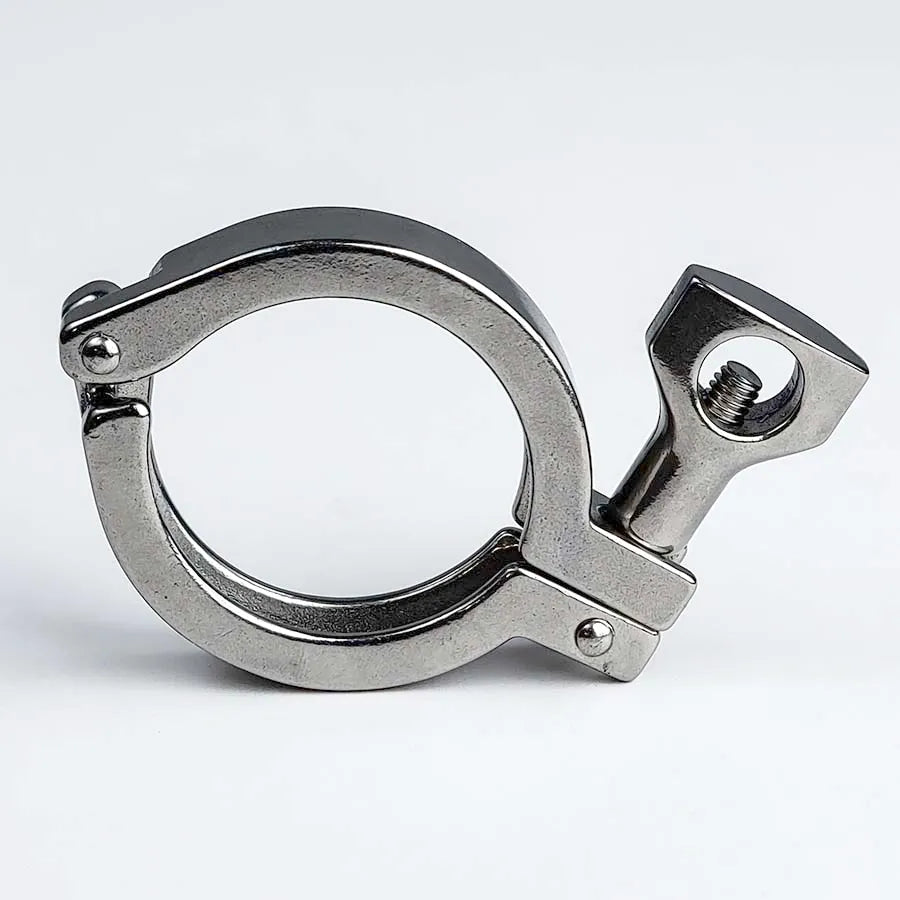

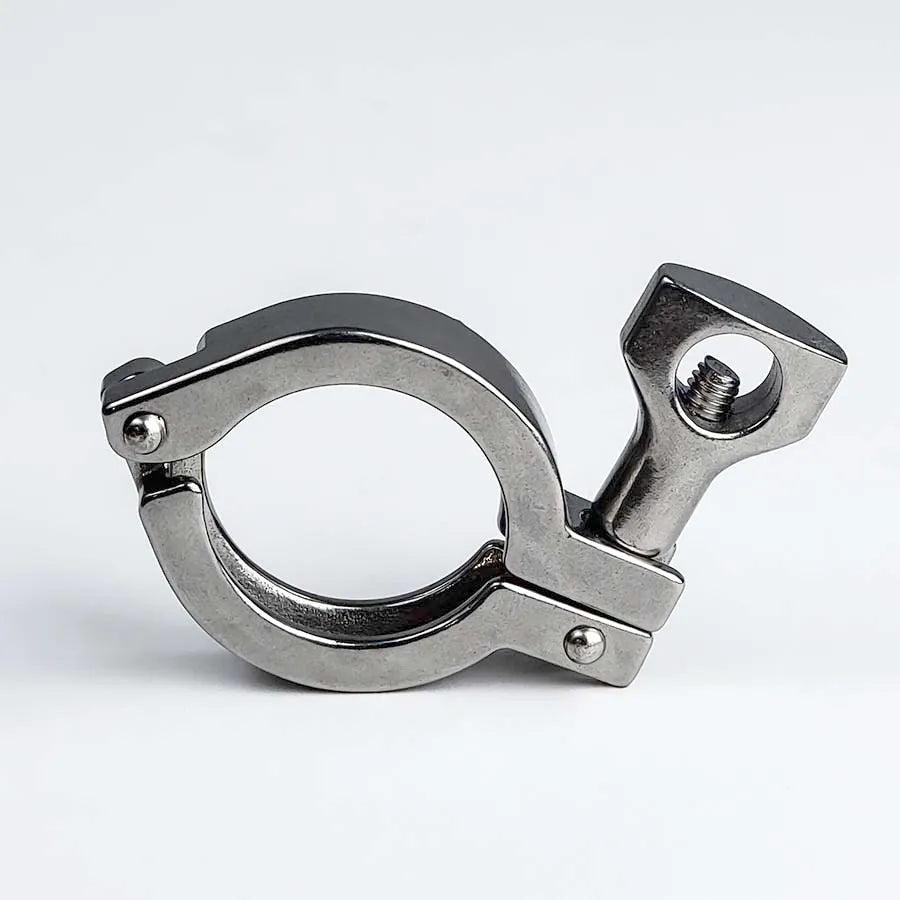

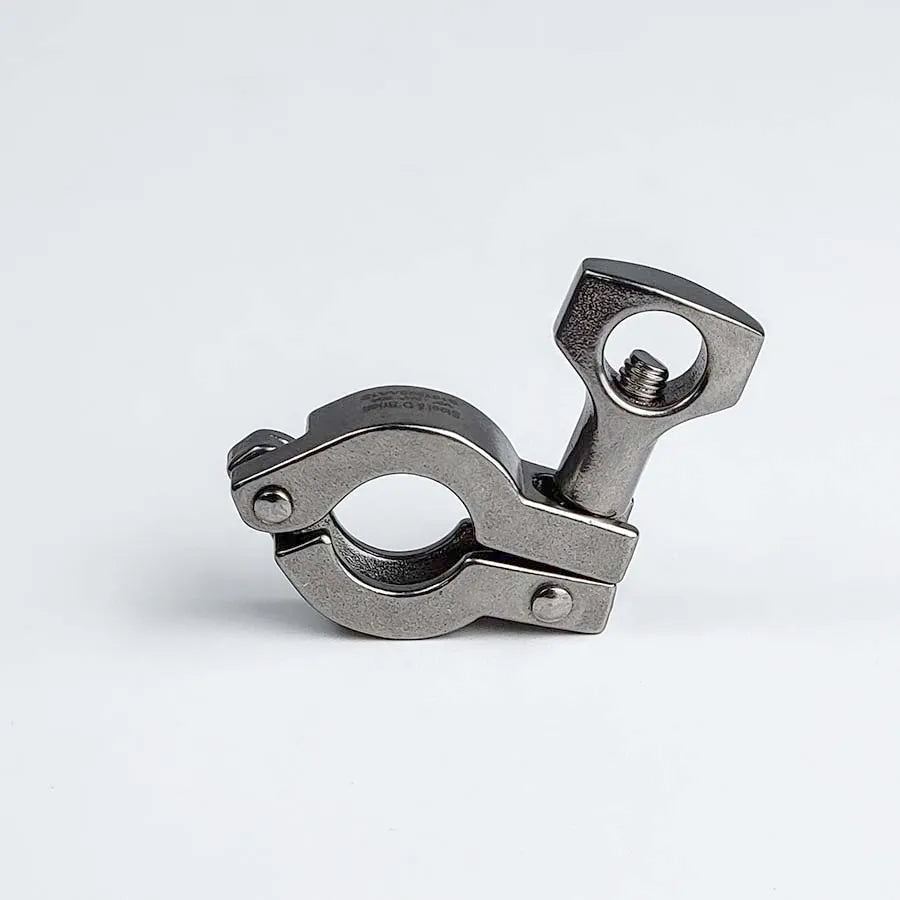

Single-Pin Heavy Duty Hinge Clamp

These Sanitary Single-Pin Heavy Duty Hinge Clamps are highly popular due to their ease of use and adherence to sanitary standards. Our sanitary tri-clamps are available in various dimensions to fit any tri-clamp fitting type.

All clamps are 304 stainless steel, but are also available in 316L stainless steel, making them perfectly suited for any FDA or Biotech application. Clamps are made to use with a sanitary gasket to connect two tri-clamp fittings. Each clamp size is rated to a specific maximum operating pressure.

The 0.5-inch and 1.5-inch clamps are capable of fitting multiple pipe sizes. This is because the tube outer diameter (tube O.D.) for 0.5-inch tri-clamp fittings is the same for 0.75-inch tri-clamp fittings and the outer diameter of 1.5-inch tri-clamp fittings is the same as the 1.0-inch tri-clamp fittings. Several clamp types are kept in stock at CLEAR Solutions and are available for purchase on our online store.
