Sanitary Tri-Clamp Tee

Current Price:
$45.00
Shipping calculated at checkout.
Stock Status:
Low stock: 5 items left
Stock Status:
Sold Out
note

Available for pickup at San Clemente Warehouse

970 Calle Negocio
San Clemente CA 92673
United States

Usually ready in 24 hours
Note

We currently only ship to locations within the United States of America.

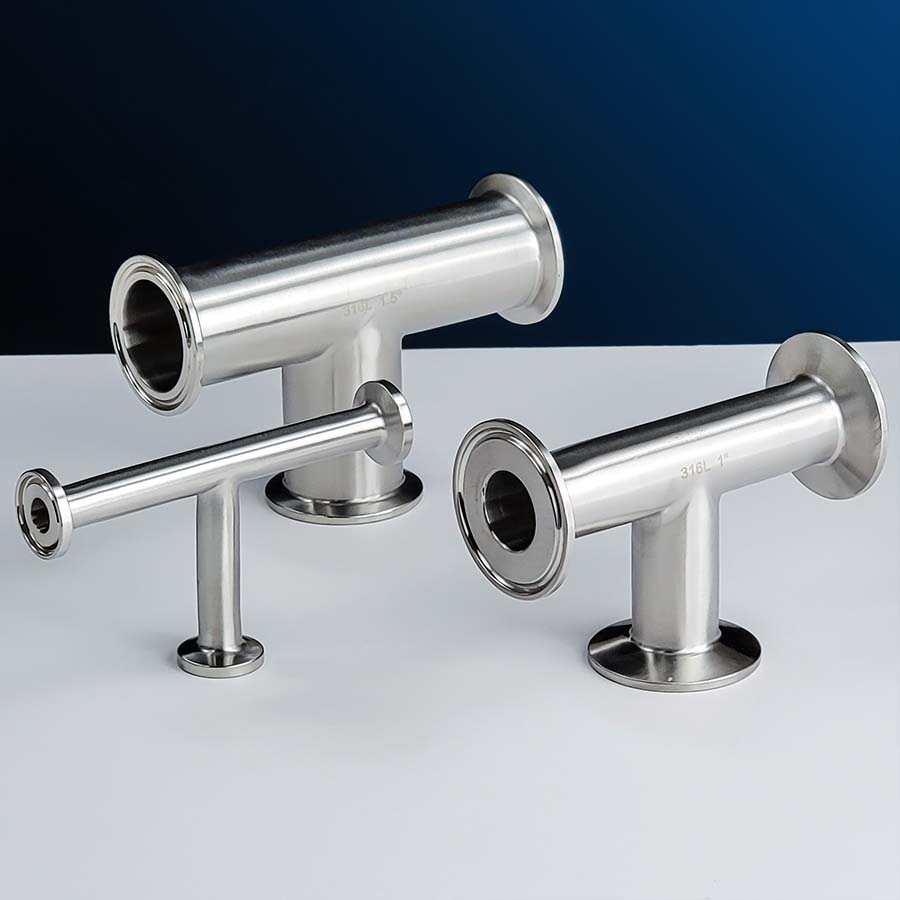

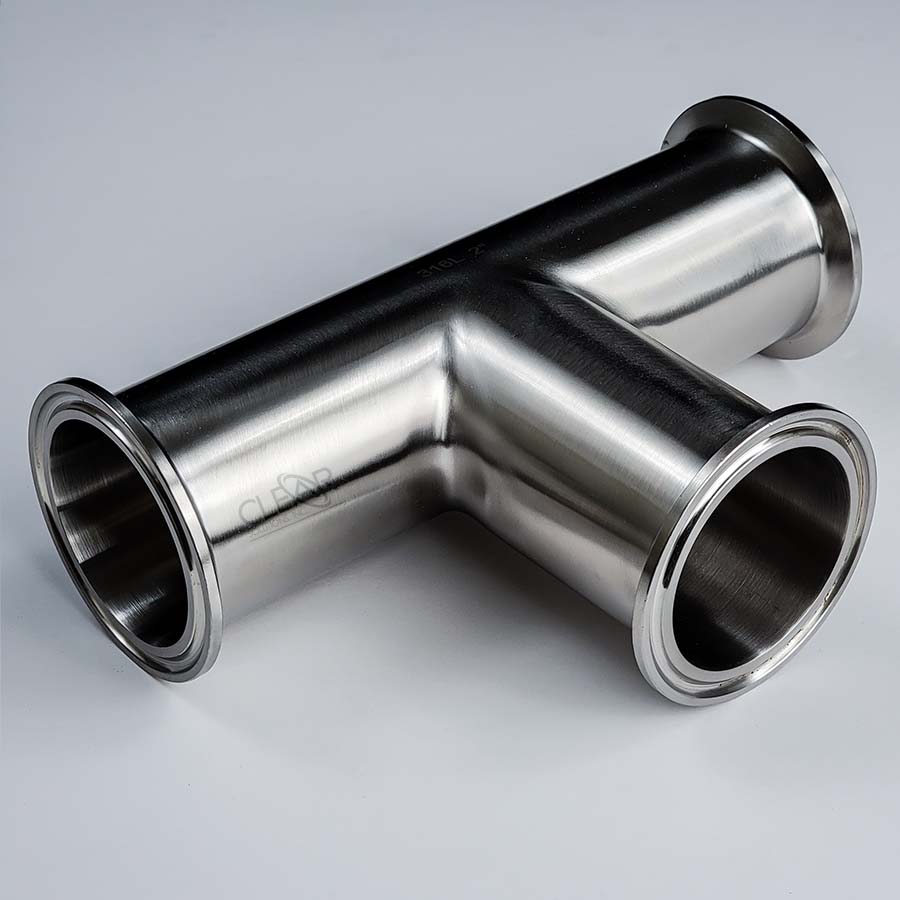

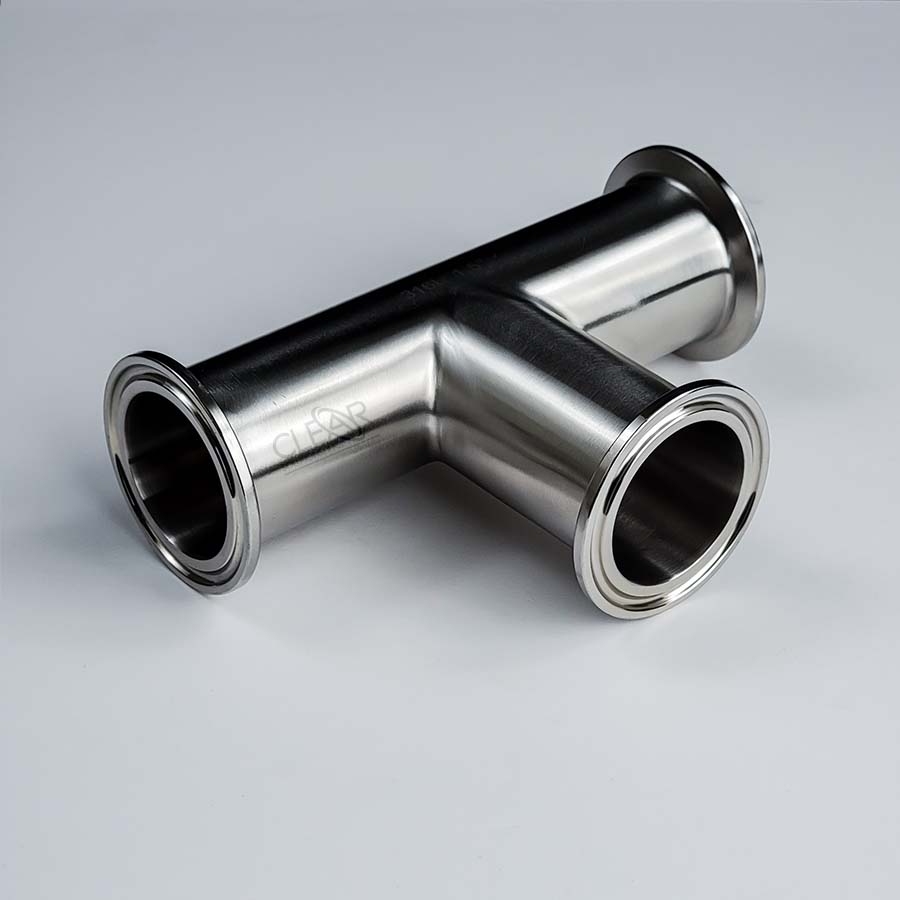

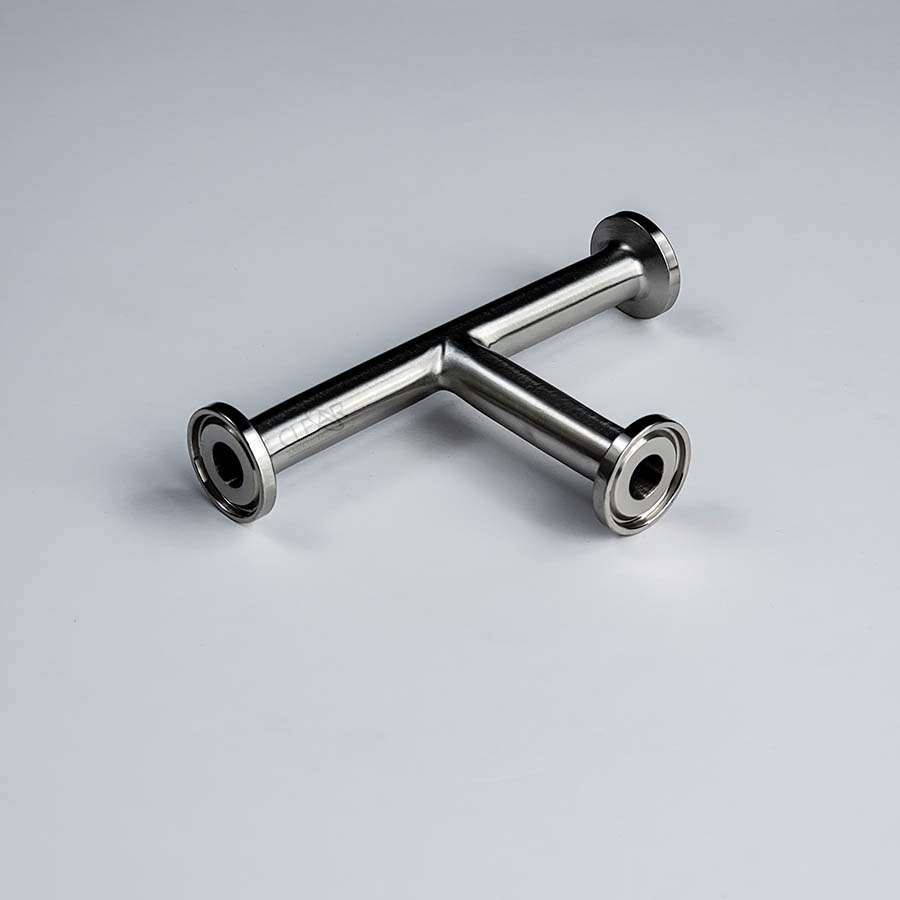

Sanitary Tri-Clamp Tee fittings are used to join two sections of tri-clamp piping together for equipment used in sanitary applications. Pipe connections are made by joining two tri-clamp ends with a tri-clamp compatible hinge clamp and sanitary tri-clamp gasket.

Tri-Clamp tees are highly versatile due to their ease-of-use and the ability to quickly assemble or disassemble the piping. This versatility allows for processors to reconfigure their equipment to adapt to situations where space is limited.

Our tri-clamp tees are made of 316L stainless steel with 240 grit surface finish (20Ra) and are 3-A certified (63-04) to meet the standards of sanitary applications.

PRODUCT DIMENSIONS


Part Number Tube O.D. Tube I.D. Flange O.D. A B Weight
7MP-316-050 0.50 in 0.37 in 0.984 in 4.75 in 2.35 in 0.24 lbs
7MP-316-100 1.00 in 0.87 in 1.984 in 4.75 in 2.35 in 0.66 lbs
7MP-316-150 1.50 in 1.37 in 1.984 in 5.50 in 2.75 in 0.71 lbs
7MP-316-200 2.00 in 1.87 in 2.516 in 7.00 in 3.50 in 1.24 lbs



Specifications

Material
316L Stainless Steel
End Configuration
Sanitary Tri-Clamp
Surface Finish
240 Grit

Applications

  • Water Purification
  • Medical Device
  • Life Sciences
  • Industrial
  • Food & Beverage
  • Distilled Spirits
  • Botanical Extract
