MEE5-20-BB Pleated Filter

Current Price:
$35.00
Shipping calculated at checkout.
Stock Status:
In stock, ready to ship
Stock Status:
Sold Out
Lead Time: 10 days
note

Available for pickup at San Clemente Warehouse

970 Calle Negocio
San Clemente CA 92673
United States

Usually ready in 24 hours
Note

We currently only ship to locations within the United States of America.

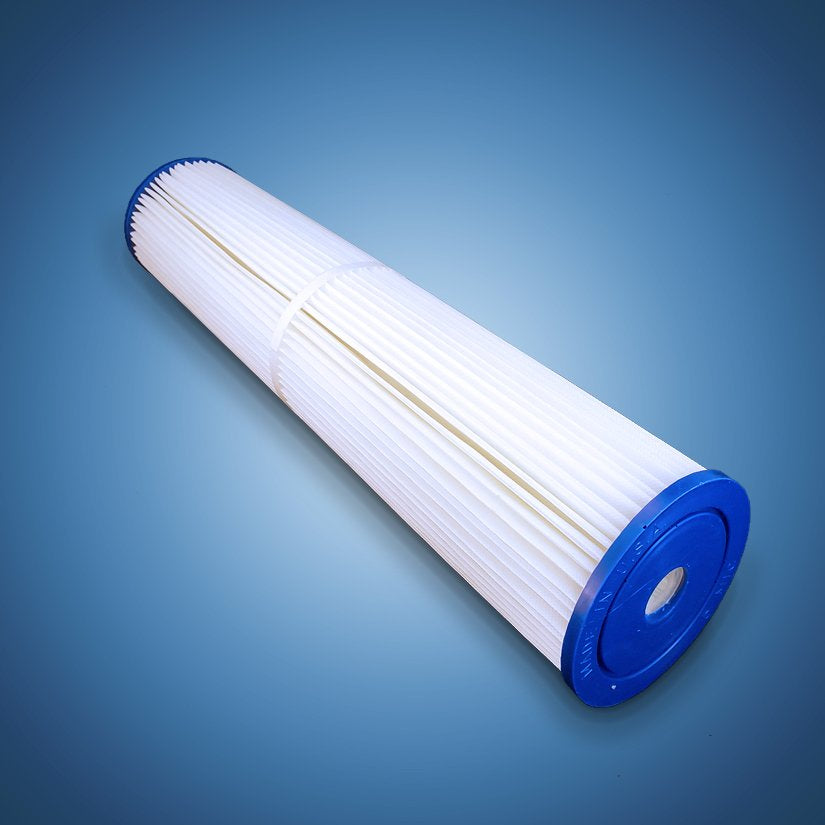

The MEE5-20-BB is a 20" long pleated filter cartridge. It has a 5 micron retention rating and a high surface area that provides for greater dirt-holding capacity, lower initial pressure drop and longer change-out intervals. This pleated filter cartridge is constructed of layers of economical polyester and polypropylene blended media, laminated to provide depth filtration.

The MEE5-20-BB is the best alternative to string wound, resin-bonded or spun cartridges. There are no resin binders to break down and contaminate the filtrate. The media is made with 100% synthetic fibers with no surfactants that cause foaming.

The BB style has a larger diameter than the standard style with an OD of 4.5”.

FDA Compliance

MEE products are manufactured of materials with no additives or other manufacturing agents. All materials used in the production of these cartridges meet the requirements of FDA Title 21 of The Code of Federal Regulations.


Specifications

Nominal Length
20"
Filter Media
Polyester/Polypropylene Blend
Core Material
Polypropylene
End Cap Material
Plastisol
Maximum Temperature
140°F (60°C)
Micron Rating
5 µm

Applications

  • Cosmetics
  • Food & Beverage
  • Industrial
  • Oil & Gas
  • Water Purification

Downloads

MEE Series Pleated Filter
