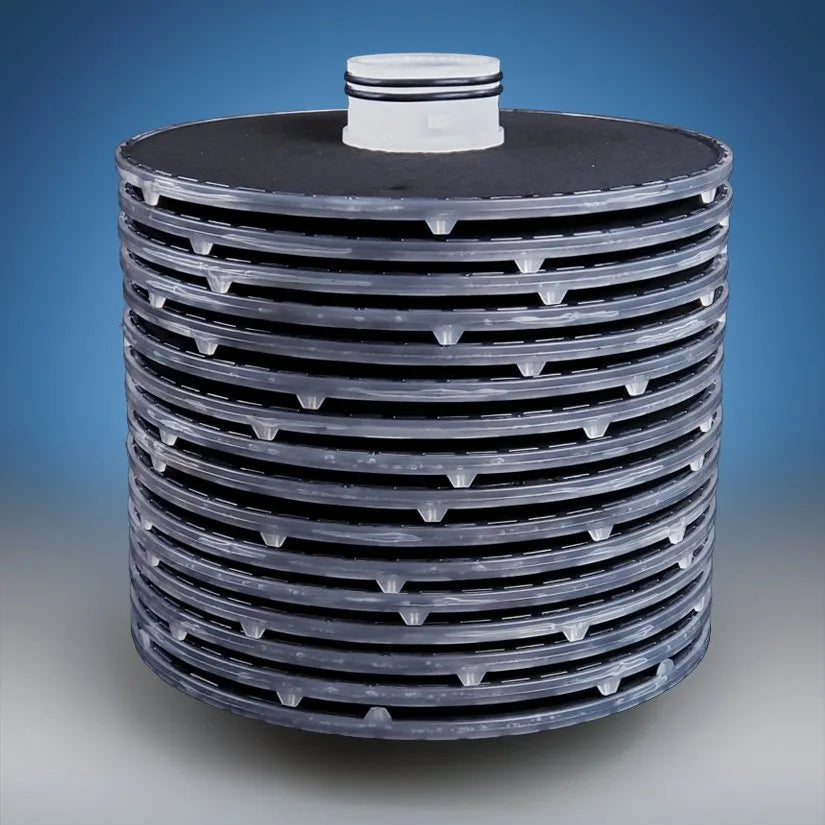

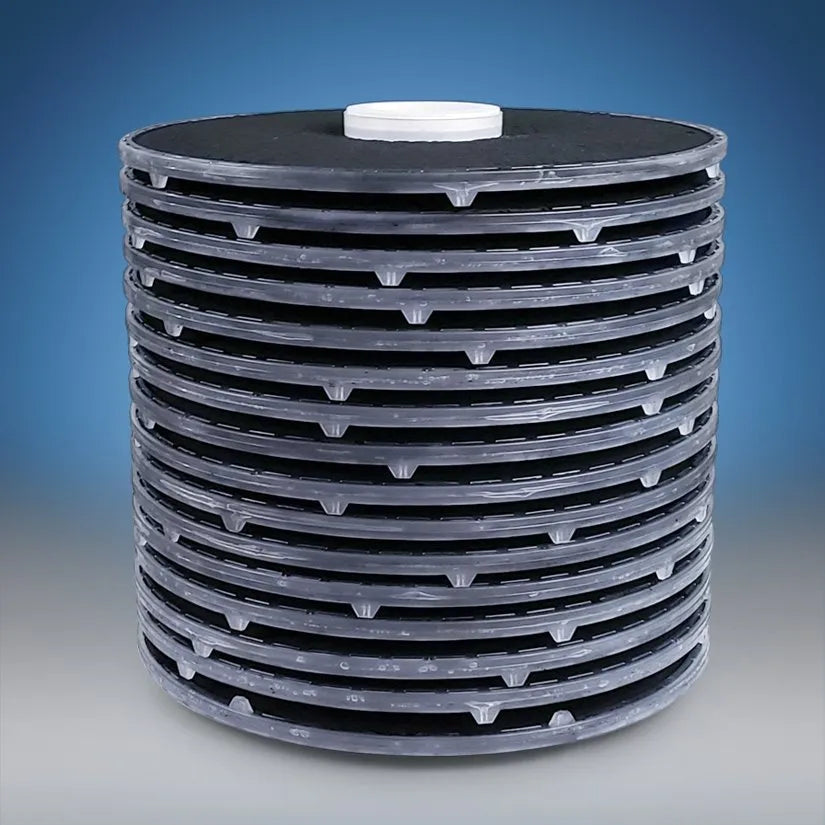

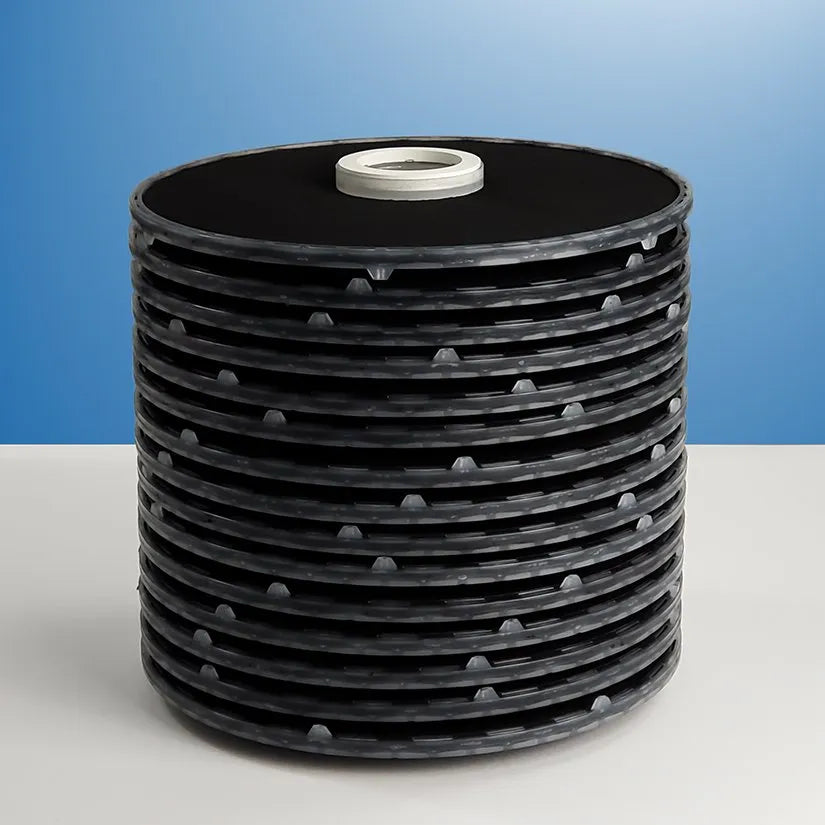

Lenticular Carbon Filter - 12in

Current Price:
$280.00
Shipping calculated at checkout.
Stock Status:
In stock, ready to ship
Stock Status:
Sold Out
Lead Time: 12–13 weeks
note

Available for pickup at San Clemente Warehouse

970 Calle Negocio
San Clemente CA 92673
United States

Usually ready in 24 hours
Note

We currently only ship to locations within the United States of America.

Lenticular carbon filters offer the particulate removal of a standard depth filter as well as the decolorization of activated carbon. These depth filters come pre-impregnated with activated carbon, eliminating the need to introduce loose carbon into your slurry and filter it out later.

ACTIVATED CARBON:

Activated carbon plays a critical role in the botanical extract industry because of its unique ability to remove chlorophyll after the initial extraction process. This is especially important when polar solvents such as ethanol are used during the extraction process. These lenticular carbon filters will effectively remove the co-extracted chlorophyll without impacting the flavor or desired extractables your solution.

CARBON GRADES

Grade Nominal Retention Carbon Grade
MC-30 5.0 μm S-51 Carbon
MC-35C 5.0 μm CGP Super Carbon
MC-35 5.0 μm S-51 Carbon
MC-55 1.0 μm S-51 Carbon
MC-55C 1.0 μm CGP Super Carbon
MC-55G 1.0 μm G-60 Carbon
MC-70 0.45 μm S-51 Carbon



Specifications

Cartridge Diameter
12 inch
Core Material
Polypropylene
Filter Media
MicroClear Depth Media
Filter Aid
Activated Carbon
End Cap Style
Flat Gasket / Double O-Ring
Gasket Material
EPDM
Cell Count
16 / 15

Applications

  • Color Remediation
  • Food & Beverage
  • Life Sciences
  • Botanical Extract
  • Distilled Spirits

Downloads

Micro-Clear Filter Media Activated Carbon Depth Media
